Chromateq Expands Its Range — CLUB SPI, CLUB DALI, SPLIT RDM and DMX SPI Now Available
LSD Asia is pleased to announce that we are an authorised distributor of Chromateq lighting control products for Singapore and Malaysia. Chromateq specialises in professional DMX, SPI, and DALI control devices and software — trusted by installers, lighting designers, and integrators worldwide.
Here is a look at their latest product releases.

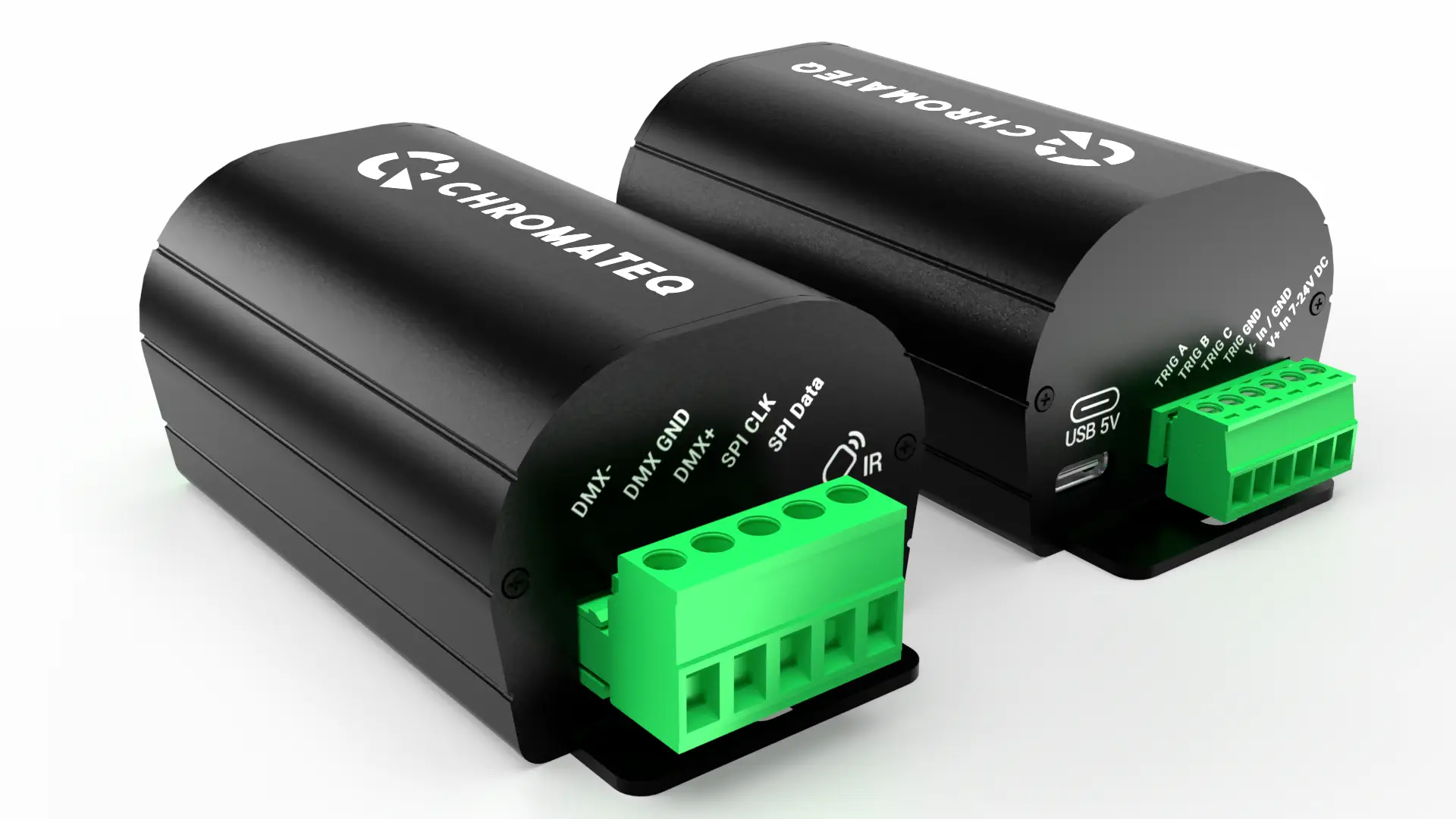

CLUB SPI — USB, SPI and DMX All-in-One Controller
The CLUB SPI is an ultra-compact interface that combines USB, SPI, and DMX512 control in a single device — designed for modern LED installations where simplicity and flexibility matter.
Unlike standard DMX-SPI drivers, the CLUB SPI is a true all-in-one solution: DMX controller, SPI LED driver, standalone memory, and trigger inputs all built in.
Key features
- Dual protocols: DMX-RDM + SPI output in PC Live and Standalone modes
- SPI control: 3,072 channels — 1,020 RGB or 768 RGBW pixels at 25 fps standalone
- 32 MB onboard memory for standalone show playback without a computer
- Multiple triggers: DMX In, 3x Smart Dry Contacts, Infrared Remote Control
- LED chip compatibility: WS, TM, UCS and other standard SPI protocols
- DMX to SPI converter mode with pixel grouping (1 to 6 pixels)
- 512 DMX channels to SPI converter — 170 RGB or 128 RGBW pixels
- Flexible power input: 9–24V DC or USB-C 5V

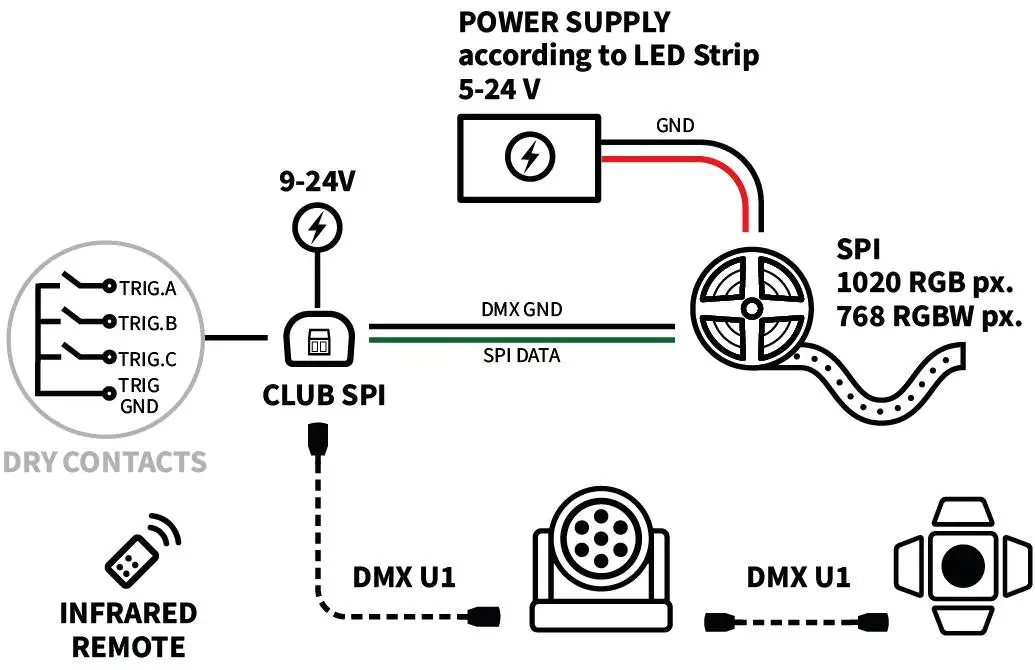

CLUB SPI — Standalone mode wiring diagram
Compact enough to integrate seamlessly into fixed installations, scenography, architectural lighting, or any compact LED setup.
CLUB DALI — DALI + DMX Controller
The CLUB DALI brings DALI and DMX control together in an ultra-compact aluminium housing — ready for any installation. Available to order now.
Key features
- Control 64 DALI IDs and 512 DMX channels per connected device
- Supports DT6 and DT8 fixture types
- 8 MB onboard memory for standalone show playback without a computer
- Standalone DALI command sending
- Trigger inputs: 3x dry contacts, DMX input, or software
- Powered via USB-C or 9–24V DC
- 3-year international warranty
- Compatible with PRO DMX 2 software (free, Windows/Mac/Linux/Raspberry Pi)

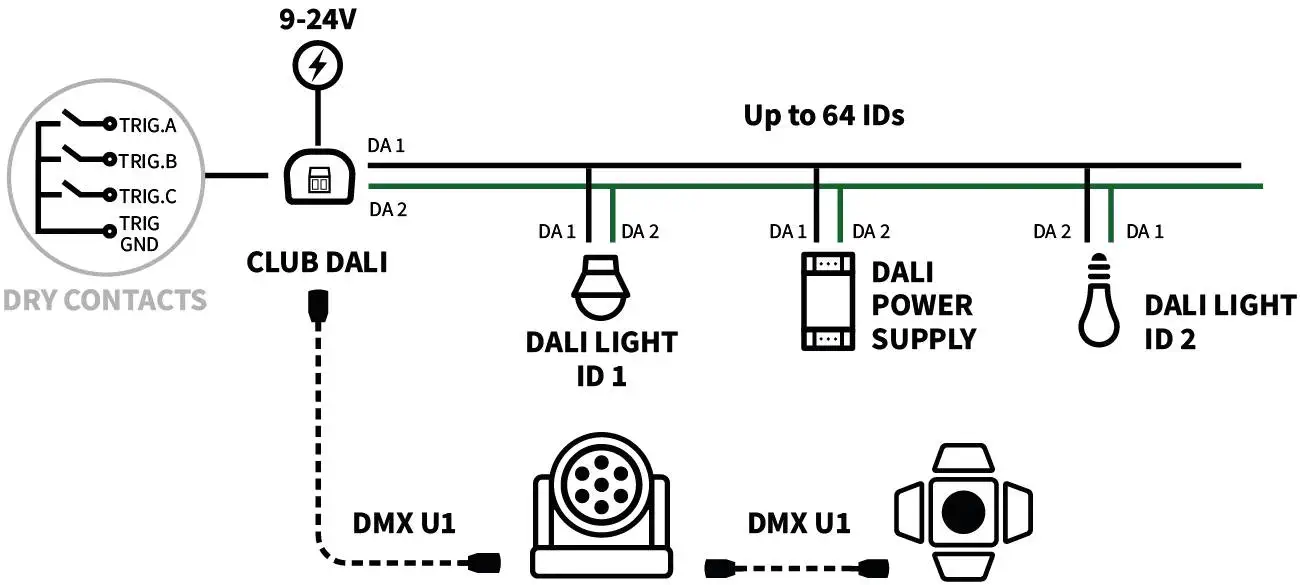

CLUB DALI — Wiring diagram
SPLIT RDM — Compact DMX-RDM Booster
The SPLIT RDM is a compact DMX-RDM distributor and signal booster designed for fast, reliable signal distribution across large lighting installations.
Key features
- 1 DMX input + 2 boosted outputs
- Full RDM support with fast bidirectional communication
- Signal amplification for long-distance DMX cable runs
- High-voltage protection for fixtures and controllers
- Compact design with screw terminal blocks — easy to install
- Power: 9–24V DC (9V PSU included, Euro or US plug)
- Supports up to 16 daisy-chain connections
- No configuration required
SPLIT RDM — Wiring diagram
Ideal for large DMX-RDM installations requiring multiple signal distribution points.
DMX SPI — Protocol Converter for LED Strips
The DMX SPI bridges DMX512 and SPI protocols — connect any DMX source and it immediately translates the signal into SPI data for driving pixel LED strips.
Key features
- 512 DMX channels in, up to 3,072 SPI channels out
- Drives 170 RGB or 128 RGBW pixels at 25 fps
- RDM compatible (1 to 6 channels)
- Pixel grouping, configurable DMX start address, pixel repeating
- Compatible with major LED ICs: WS2812, TM, UCS and more
- Powered via USB-C 5V or 9–24V DC
- Compact aluminium housing
- Upgradable to CLUB SPI for standalone capability

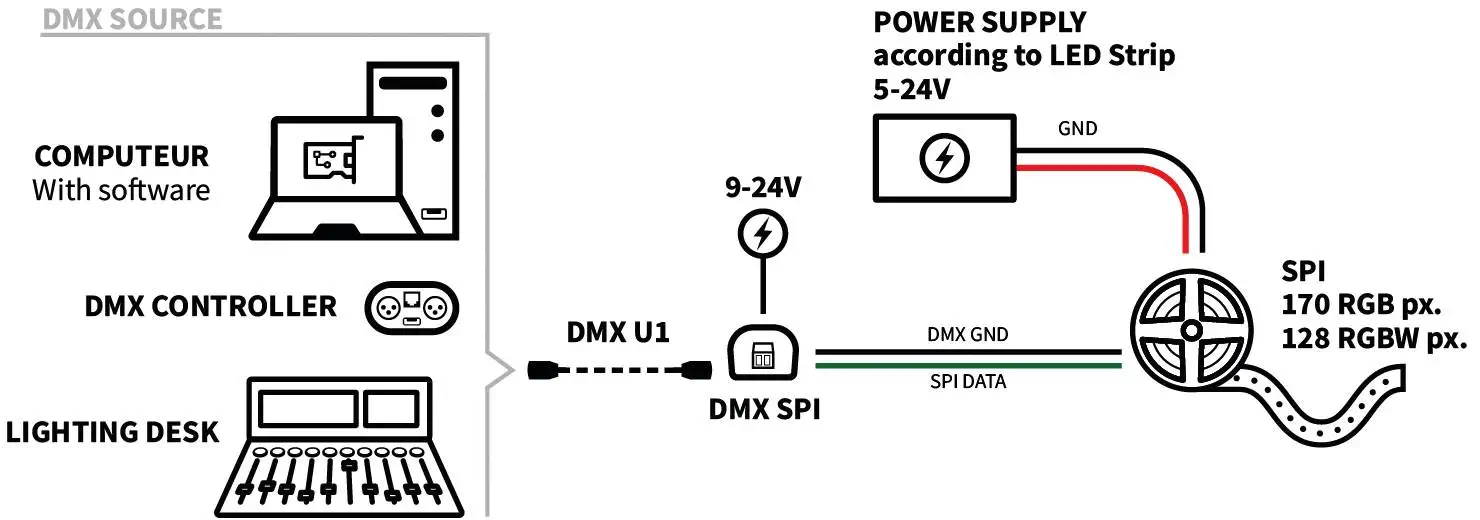

DMX SPI — Wiring diagram
Contact us to enquire
LSD Asia is the authorised Chromateq distributor for Singapore and Malaysia. Contact us for pricing, availability, and technical support on any Chromateq product.
For more information on the full Chromateq range, visit chromateq.com.
